Product Details

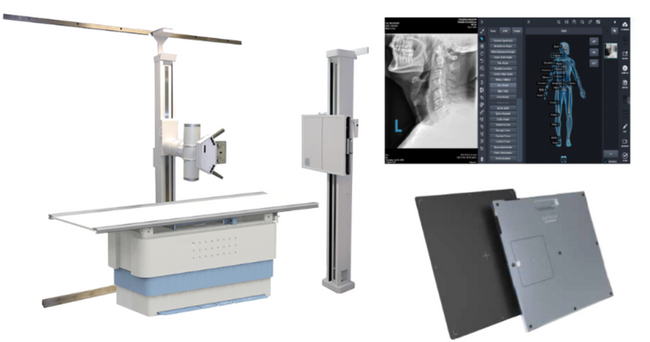

Elevating Table with Floor-to-Wall Rotate Tube Stand
40kW, 500mA, APR, E7239 140kHU tube

Elevating, Four-Way Float Top Table - 750 LBS, Patient Load

86.5" x 31.5" float tabletop
43.3" longitudinal and 9.5" lateral tabletop travel
Vertical Travel 19.69" x 43"
Collision protection
Super Speed Bucky
Heavy duty manual cassette tray
103 line, 10:1 ratio, 34-44" focal range grid

Rotate Floor-to-Wall Tube Stand with Transverse Travel

+/-5" Transverse travel
360° Column Rotation, mechanical detent
Vertical travel 5"-76.8"
39.2" wall to focal spot at detent position
Platform tube mount
Angulation dial
Magnetic locks for longitudinal , transverse , vertical & tube rotation
Fits in ceiling heights of 93"-120"
75.7" Longitudinal Travel with 8' floor track
UL Classified, operates from 24 VDC

Wall Stand with 17 x 17" Grid Cabinet

Floor-to-Wall Mount, Counterbalanced Column
Minimum ceiling height: 86" from floor
Vertical Travel: 9-3/4" to 72-3/4"
Grid Cabinet with Heavy Duty Tray and 1O:1 , 103 line grid
Electric locks (24VDC 2 Amp required) power supply included
Operates on 120 VAC

X-Ray Tube - 140,000 heat unit, 1.0-2.0mm focal spots, 90° horn angle Collimator- Certified Manual Collimator with laser light, LED, 125kVP
Cables - pair, 25' long

Urgent Care Digital X-ray System

14x17 inch Csl Tethered, cassette size DR Flat Panel Detector, with advanced acquisition PatientIMage software and PACS

System Specifications:

14x17 inch CsI Wireless, cassette size DR Flat Panel Detector

Active area (Real Image Size): 358 x 430 (mm) / 14 x 17 (inch)
Overall Dimensions: 386 X 460 X 15 ㎜
Weight: 2.98 kg
Pixel Pitch: 140 ㎛
Resolution: 2,560 X 3,072
A/D Conversion: 16 bit
2 Batteries, Battery Charger, and Back-up Cable Included
Automatic Parameter Selection
Specific Anatomical Post-processing

PatientImge Acquisition Software

General Features:

Superior Image Quality
Exam-specific algorithms image processing
Automatic image optimization
Edit existing patient information/search patient by patient name, patient ID, Accession number, bar code, etc.
True size for printing
Resend / Reprint image
Send/Print queue management
User-friendly touch GUI
Useful functions: Auto Cropping, Auto Grid Suppression, Auto Labeling, Auto Rotation, Free Rotation, Multi Layout, etc.
Fully DICOM 3.0 Compatible: MWL, Send, Print, MPPS, etc. • Customized functions and various themes

User Interface

User-Friendly Interface Supporting Touch Screen Functions
One Screen to Access All Functions
Same Interface for the Acquisition Software and Viewers.

Image Processing with Advanced Algorithm

Fast Processing with Superior Image Quality
Intelligent Algorithms for Sharp Edges without noise amplification
Automatic image optimization

PatientImage PACS

PatientImage Server is a complete and cost-effective PatientImage Imaging solution that provides imaging departments with a scalable and upgradable solution to archive patient studies. The PatientImage Server solution includes features to archive patients, retrieve studies, print studies, edit patient reports, record voice notes with patient study, and transmit studies over telephone lines or internet.
PatientImage Server solution consists of a group of software and hardware components that has specifically chosen to provide the maximum performance and scalability.
Supports all DICOM modalities.
Archiving on PACS server and on the Network.
Multi-Level relational database structure for patients/studies/series and images.
