Product Details

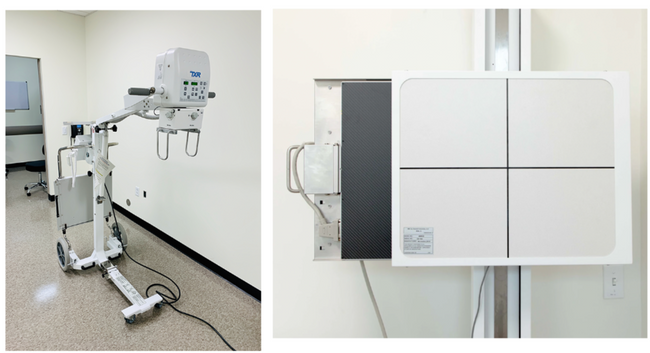

Portable System with Stand
100 mA, 125 kVp, Portable System with touch screen console

  • 0 kW, 100 mA, 125 kVp
  • High Frequency Ripple: 300 kHz
  • 40 to 125 kVp in 1 kVp steps
  • Touch Screen
  • Allows customization of 6 APR regions (skull, thorax, spine, abdomen/pelvis , lower and upper extremities) - small, medium, large and pediatric patient sizes
  • User-friendly multi-language selection
  • 14 mA stations: 5, 6.4, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 and 100
  • 001-10 second exposure time range, 41 total in 25% steps
  • 1 to 250 mAs, 34 total in 25% steps
  • Tube: 0.5mm -1.Bmm stationary anode x-ray tube, 47,215 kHU
  • Power Cord: 7' long {6 meters)
  • Exposure Cord: 8' long (3 meters)
  • Collimator: Certified manual, LED display
  • Stand on base with wheels for easy maneuverability
  • Gas spring arm supports tube to accommodate easy positioning
  • Positive mechanical brakes
  • Cassette storage box accommodates up to 8 cassettes
  • Vertical tube travel, 4" (17.3"-78.7")
  • 5 lbs total weight
  • Single-phase line Automatic Regulation, Automatic Output Power Adaptation to Power Line Conditions
  • 11O / 240 VAC - requires solid 20 amp breaker on 110V line for full power (can be de-rated)

Digital X-ray Panel

17x17 inch Csl Tethered, cassette size DR Flat Panel Detector, with advanced acquisition PatientIMage software and PACS

System Specifications:

17x17 inch Csl Tethered, cassette size DR Flat Panel Detector

  • Active area (Real Image Size): 17x17 inch
  • Overall Dimensions: 495.5x495.5x15.8mm (19.5x19.5x0.62 inch)
  • Weight: 4.3 Kg (9.5 lb)
  • Power Consumption: max of 21 Watt
  • Carbon Fiber Sensor Protection Plate
  • Cesium Iodide (Csl) with Amorphous Silicon (a-Si) Photodiode
  • Pixel Matrix: 3040(H)x3036(V)
  • Pixel Pitch: 140 µ m
  • A/D Conversion: 16 bit
  • X-ray Voltage Range: 40-150 kVp
  • Wired Interface: Gigabit Ethernet (1 000BASE-T)
  • Control Box with AC100-240V, 50/60Hz input power, and DC24V 2.5A 60W(MAX) output power

PatientImge Acquisition Software

General Features:

  • Superior Image Quality
  • Exam-specific algorithms image processing
  • Automatic image optimization
  • Edit existing patient information/search patient by patient name, patient ID, Accession number, bar code, etc.
  • True size for printing
  • Resend / Reprint image
  • Send/Print queue management
  • User-friendly touch GUI
  • Useful functions: Auto Cropping, Auto Grid Suppression, Auto Labeling, Auto Rotation, Free Rotation, Multi Layout, etc.
  • Fully DICOM 3.0 Compatible: MWL, Send, Print, MPPS, etc. • Customized functions and various themes

User Interface

  •  User-Friendly Interface Supporting Touch Screen Functions
  • One Screen to Access All Functions
  • Same Interface for the Acquisition Software and Viewers.

Image Processing with Advanced Algorithm

  • Fast Processing with Superior Image Quality
  • Intelligent Algorithms for Sharp Edges without noise amplification
  • Automatic image optimization

PatientImage PACS

  • PatientImage Server is a complete and cost-effective PatientImage Imaging solution that provides imaging departments with a scalable and upgradable solution to archive patient studies. The PatientImage Server solution includes features to archive patients, retrieve studies, print studies, edit patient reports, record voice notes with patient study, and transmit studies over telephone lines or internet.
  • PatientImage Server solution consists of a group of software and hardware components that has specifically chosen to provide the maximum performance and scalability.
  • Supports all DICOM modalities.
  • Archiving on PACS server and on the Network.
  • Multi-Level relational database structure for patients/studies/series and images.

Wall Stand with 17 x 17" Grid Cabinet

  • Floor-to-Wall Mount, Counterbalanced Column
  • Minimum ceiling height: 86" from floor
  • Vertical Travel: 9-3/4" to 72-3/4"
  • Grid Cabinet with Heavy Duty Tray and 10:1, 103 line grid
  • Electric locks {24 voe 2 Amp required) power supply included
  • Operates on 120 VAC
