Product Details

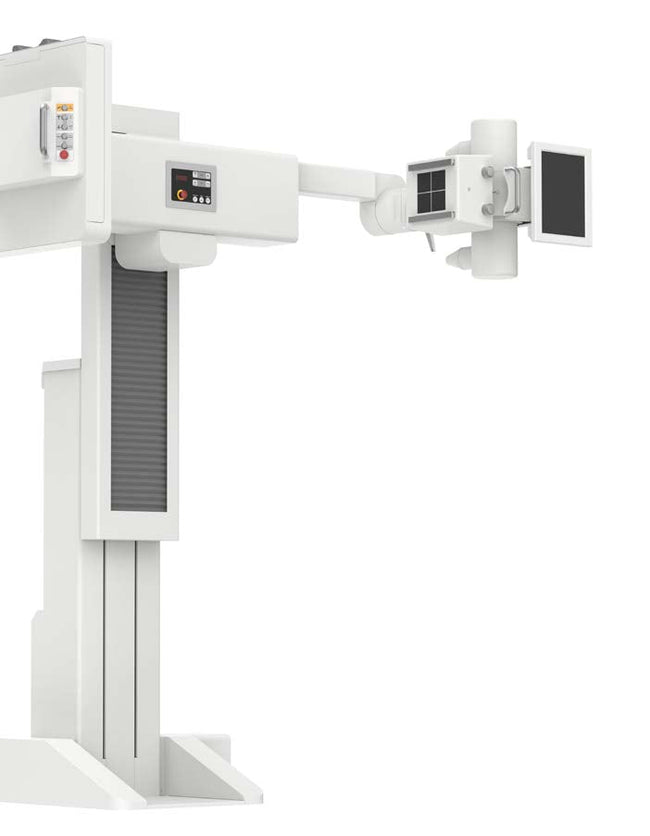

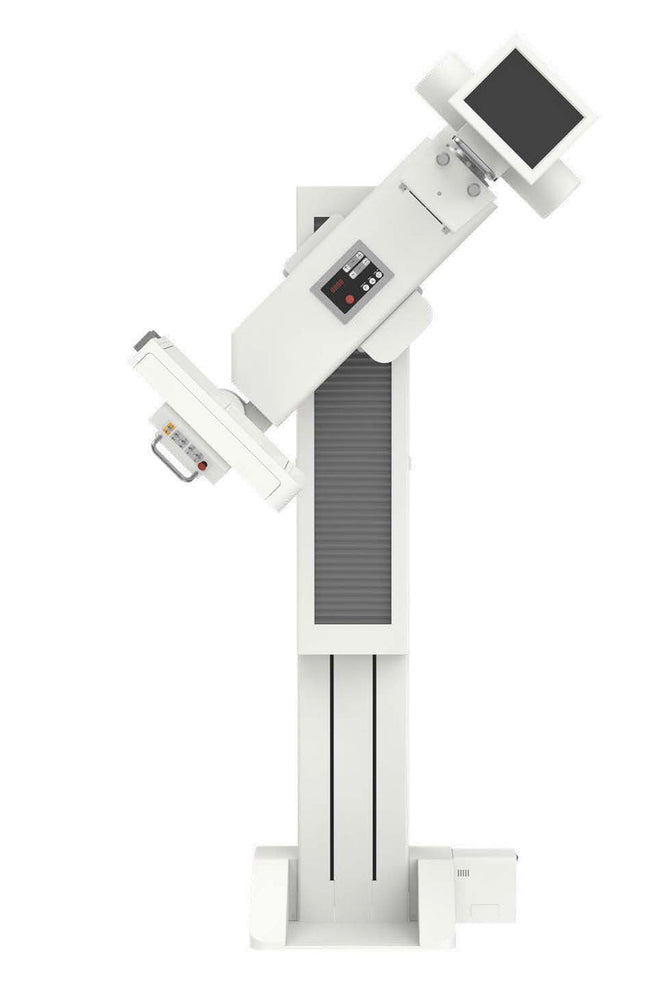

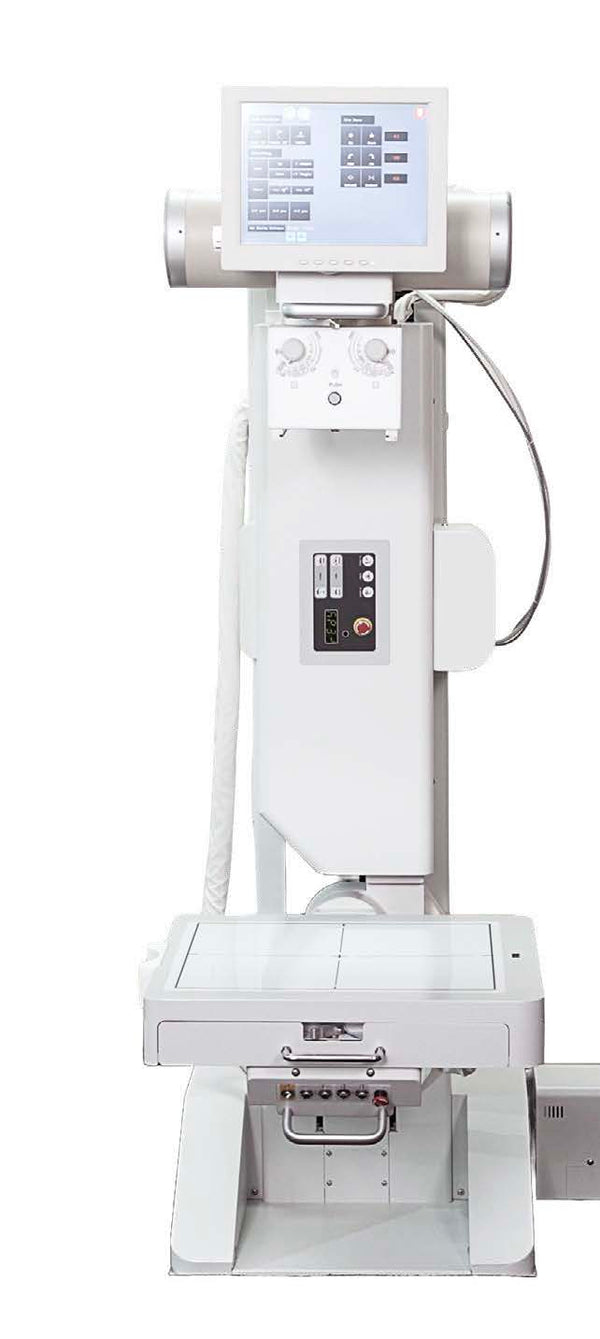

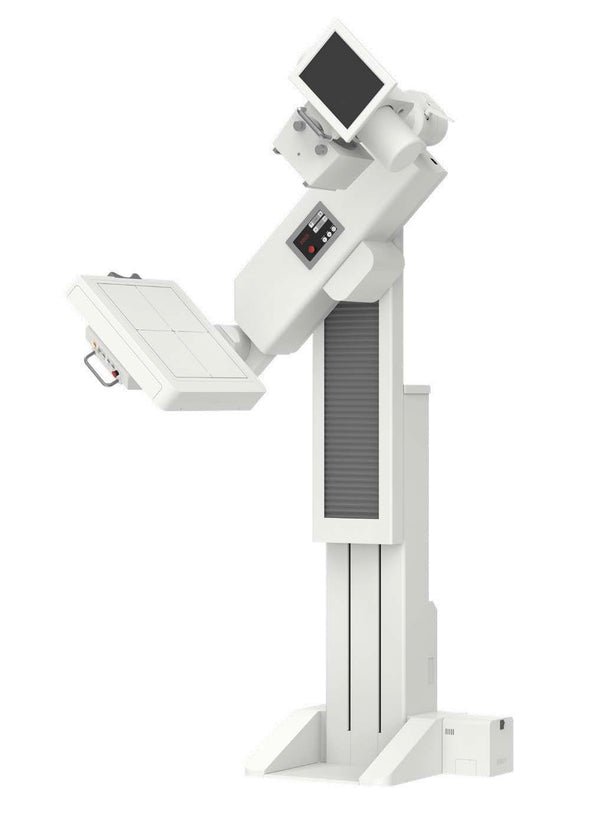

Revolutionize Radiography: The AspenXDR X-Ray System by Aspen Imaging

Revolutionize your medical imaging with the AspenXDR X-Ray System by Aspen Imaging. Combining precision, reliability, and cutting-edge innovation, this system is crafted to meet the diverse diagnostic needs of healthcare providers. Whether you're conducting a routine chest exam or navigating more complex anatomical imaging, AspenXDR ensures unparalleled accuracy and flexibility. Its advanced design features a wide Source-to-Image-Distance (SID) range and vertical travel functionality, allowing seamless imaging for patients of varying needs. With a user-friendly interface, preset positions for common scenarios, and powerful technology, this system elevates efficiency while delivering exceptional image quality. Built to support busy medical facilities, AspenXDR is a Texas-engineered solution you can count on.

Key Features:

Wide SID Range: Perfectly adjusts for versatile imaging—from standard chest exams to complex anatomical angles.
Large Image Receptor Compatibility: Built to work with standard 14” x 17” image receptors, ensuring seamless reliability.
Vertical Travel Functionality: Easily adjusts the X-ray tube height for various patient and imaging requirements.
Multiple Movement Control Options: Operate with physical buttons, a remote controller, or a touchscreen for convenience and precision.
Preset Positions: Includes automated presets for common imaging needs such as chest exams (40” and 72” distances) and table positioning.

High-Performance X-Ray Tube and Generator:

Toshiba E7242X tube supporting 125 kV, enhanced focal spots, and a 200 kHU anode heat capacity.
CPI CMP200DR high-frequency generator, offering superior performance with up to 450 kHz switching capability.

Technical Specifications:

X-Ray Tube: Toshiba E7242X, 125 kV capable, 0.6 x 1.5 mm focal spot, 200 kHU anode heat capacity.
Collimator: White LED light source with multilayer shutters, laser alignment, and adjustable rotation.
High-Frequency Generator: CPI CMP200DR, up to 450 kHz frequency with integrated service software.

Movement Range:

Motorized dual-speed travel.
Arm elevation and rotation for comprehensive coverage and precise positioning.

Why Choose AspenXDR?:

AspenXDR is designed for exceptional imaging quality and day-to-day operational ease, making it the go-to choice for medical facilities of all sizes. Backed by Aspen Imaging's legacy of excellence and innovation, this system offers extensive support and customization to cater to your unique requirements. With optional upgrades such as a DR panel, image software, and more, the AspenXDR delivers a future-ready, tailor-fit solution for your imaging needs.

Note: DR panel, computer, and monitor not included. Installation and shipping are excluded. Some images may display optional components. Please contact a salesperson for a full quote and customization options.
