Product Details

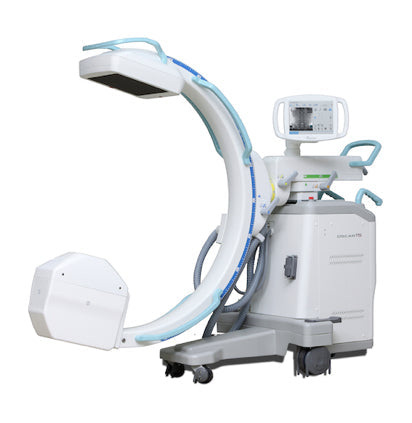

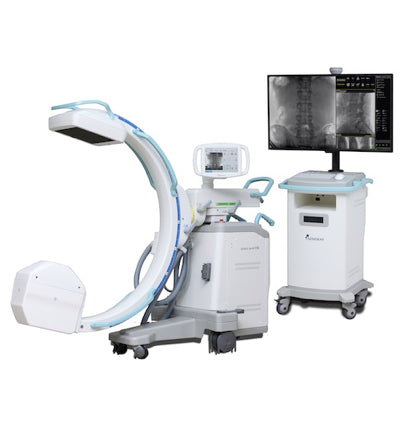

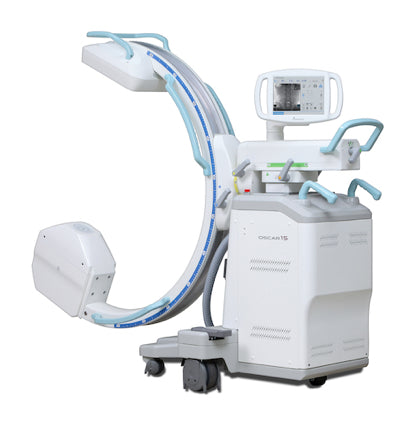

Genoray OSCAR 15: High-Performance Mobile C-Arm for Precision Imaging

The Genoray OSCAR 15 Mobile C-Arm X-ray System is an advanced solution designed to deliver exceptional imaging quality and versatile functionality for a wide range of medical applications. Its core innovation lies in the integration of a state-of-the-art flat panel detector, offering superior image clarity, uniformity, and safety compared to conventional systems. Compact and mobile, the OSCAR 15 is tailored for both adult and pediatric patient populations, supporting critical surgical procedures such as orthopedic, vascular, neurologic, urologic, cardiac, and more. With features like enhanced fluoroscopic imaging, precise alignment via its Class 2 Laser Localizer, and an intuitive ZENIS System for image management, the OSCAR 15 allows medical professionals to operate with unmatched accuracy and efficiency.

Key Features:

Flat Panel Detector (CMOS):

Pixel Pitch: 100µm for outstanding resolution
Resolution of 2600×2560
No geometric distortion or veiling glare, ensuring superb image uniformity
Sleek, space-saving design compared to traditional image intensifiers

Generator:

High-frequency inverter with a 15 kW generator
Flexible kV range (40-120kV) and mA options for continuous and pulsed modes
Auto Brightness Control (ABC) for optimal image clarity

X-Ray Tube:

Dual focal spot size (0.3/0.6mm) for precision imaging
Rotating anode with 300,000 heat capacity for consistent performance

C-Arm Mobility:

Adjustable and ergonomic with a 1000mm SID and wide orbital rotation of 155°
Pivot Rotation up to 460°, ensuring flexibility during various complex procedures
Smooth horizontal, vertical, and panning motion for precise positioning

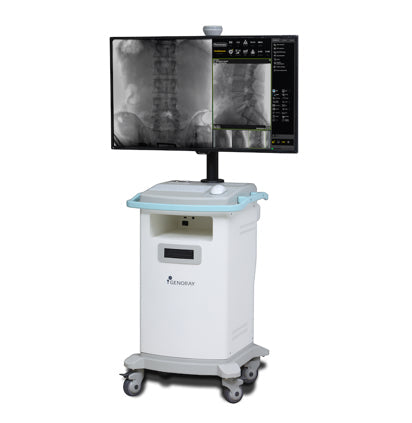

ZENIS Image Management System:

DICOM 3.0 for seamless acquisition, storage, and printing
Integrated Digital Subtraction Angiography (DSA) for roadmapping and angiography

Monitor and Controls:

43” 4K wide monitor for crystal-clear visuals
User-friendly 10.4” touchscreen LCD controller for easy navigation

Safety Features:

Dose Area Product (DAP) software for radiation dose optimization
Built-in warning lamp and Class 2 Laser Localizer for enhanced safety

Designed for healthcare professionals who demand precision and reliability, the Genoray OSCAR 15 will redefine imaging efficiency in your practice. Whether you’re performing complex surgeries or diagnostic imaging, trust the OSCAR 15 to deliver innovation that puts patient care first.
